750 W, 80 Plus Bronze, 64.4 CFM, 39.92 dBA, 150 x 140 x 86mm
The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.
Reliable Power
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% LoadNZXT C750W Bronze PSU
Highly Efficient
Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% LoadNZXT C750W Bronze PSU Fan
Quiet Cooling

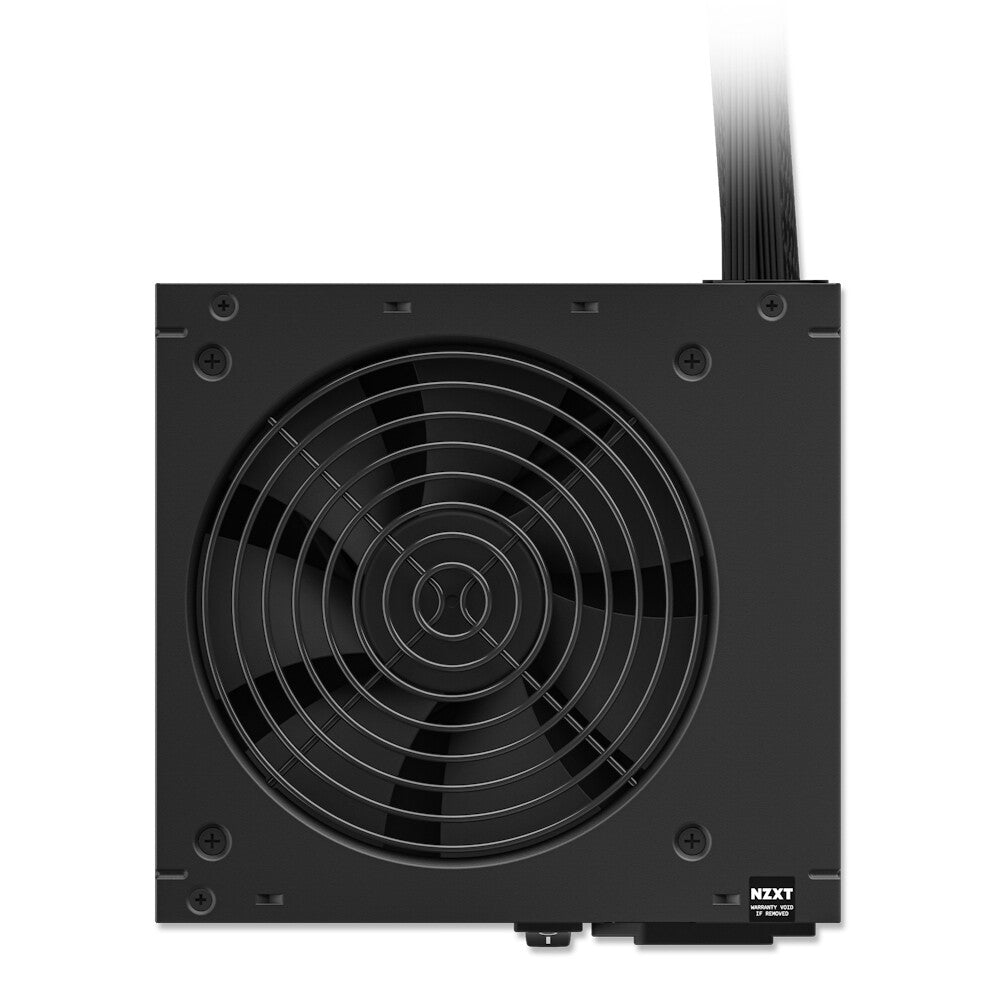

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Enhanced Safety
Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Durable & Sleek
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
| Power |
|---|
| Power protection features |
Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@220V) |
5 A |
| Maximum input current (@110V) |
10 A |
| Input current |
10-5 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
750 W |
| Ports & interfaces |
|---|
| Cabling type |
Non-Modular |
| ATX Power connector (24-pin) |
Yes |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
2 |
| Peripheral (Molex) power cable length |
150,500 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| SATA power cable length |
150,500 mm |
| Number of SATA power connectors |
4 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Noise level |
39.92 dB |
| EPS version |
2.92 |
| ATX version |
2.53 |
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan speed |
2400 - 2400 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging content |
|---|
| Cables included |
AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, China RoHS, REACH, RoHS, UKCA |
